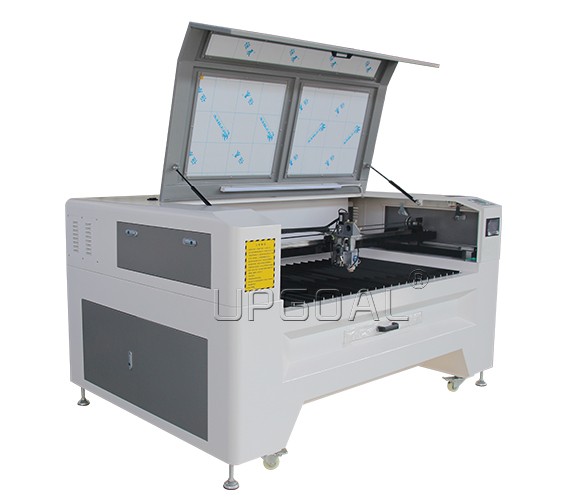

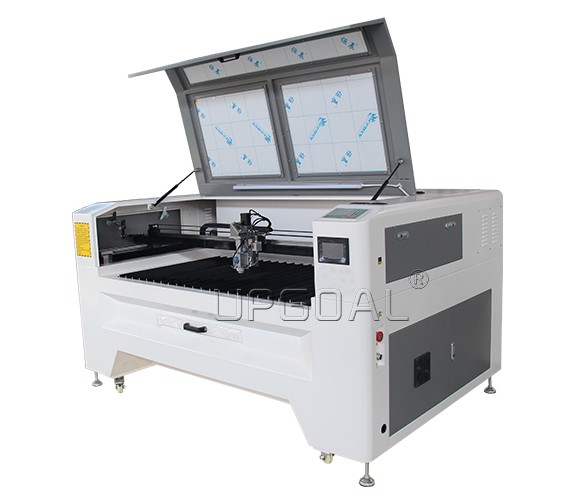

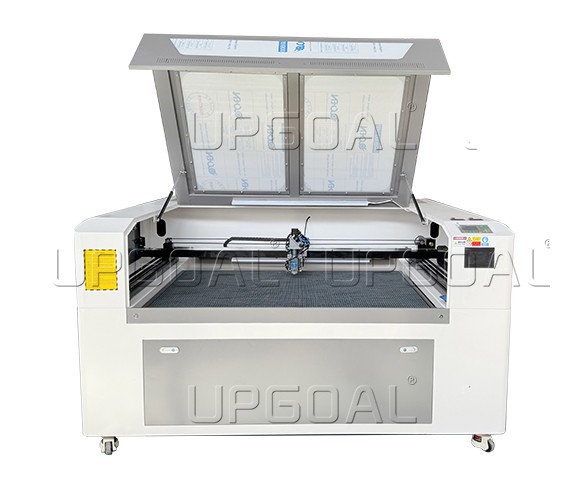

300W Mixed Metal Non-Metal Co2 Laser Cutting Machine 1300*900mm
Brief Introduction:
Model: UG-1390ML

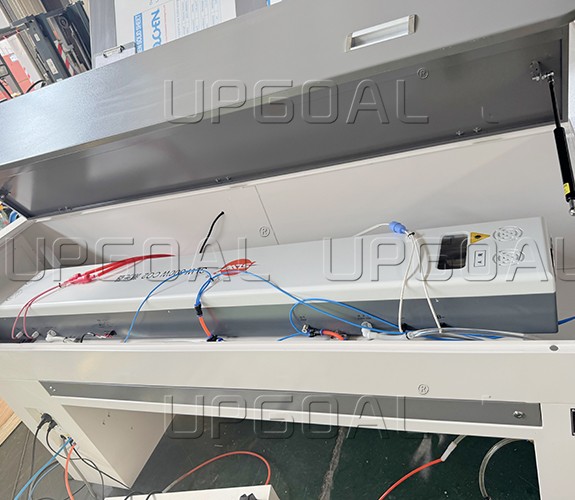

300W SLW folding CO2 laser tube
1300*900mm 4*8feet working area
RuiDa 6332M live focus system
CW-6000 industrial chiller
Applications

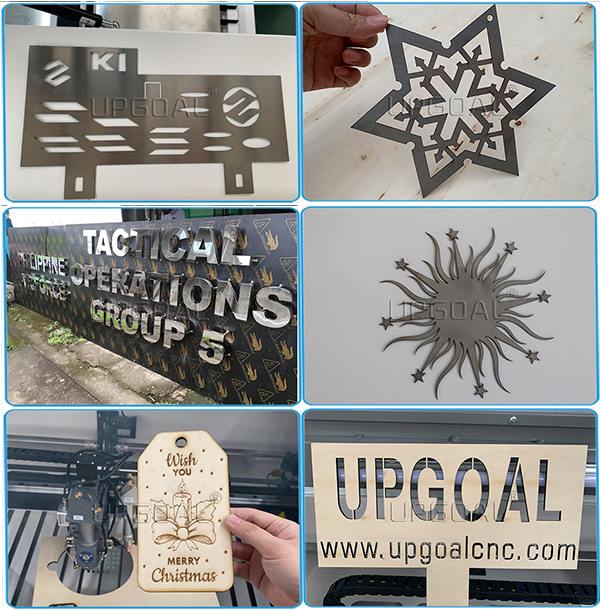

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.
Features
1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.
2. Equipped with metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

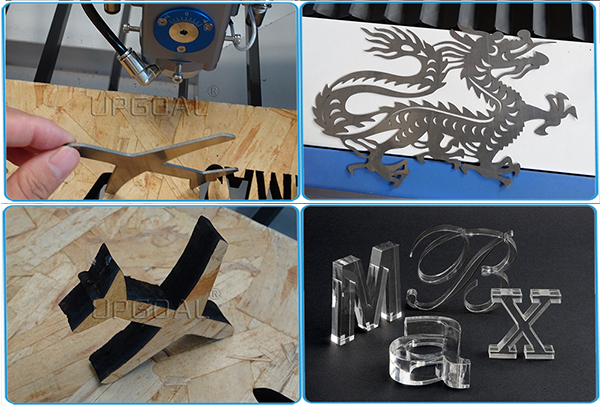

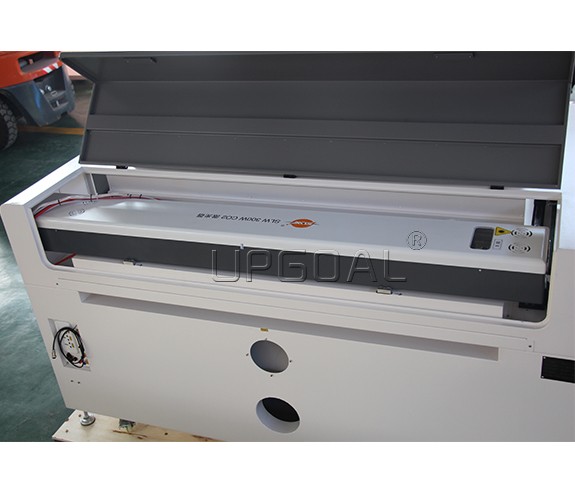

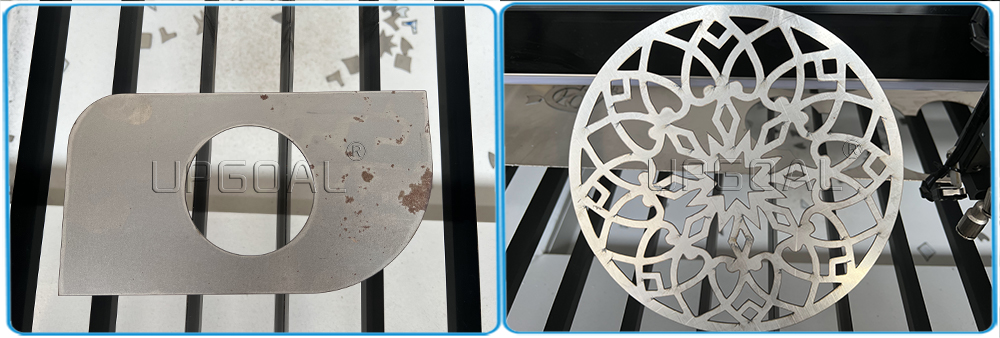

With famous SLW 300W folding Co2 laser tube, can for 2mm thickness stainless steel/carbon steel cutting, also can for 30mm acrylic and 20mm thickness wood cutting.

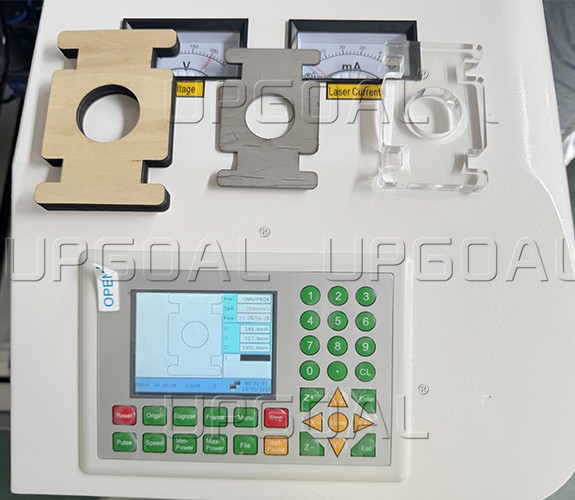

3. With advanced embedded RuiDa 6332M DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect
4. Specialized metal cutting using non-contact RuiDa live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable.

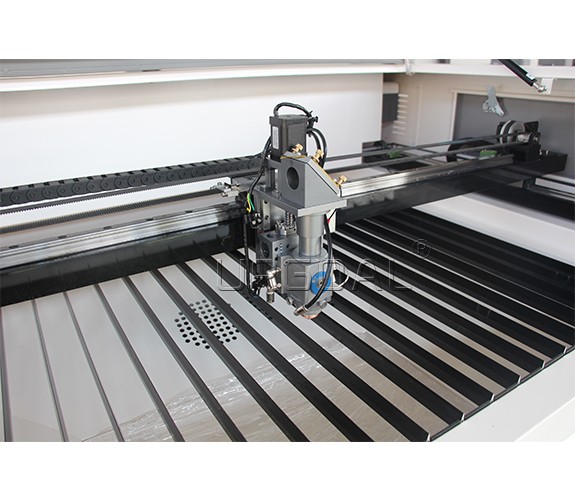

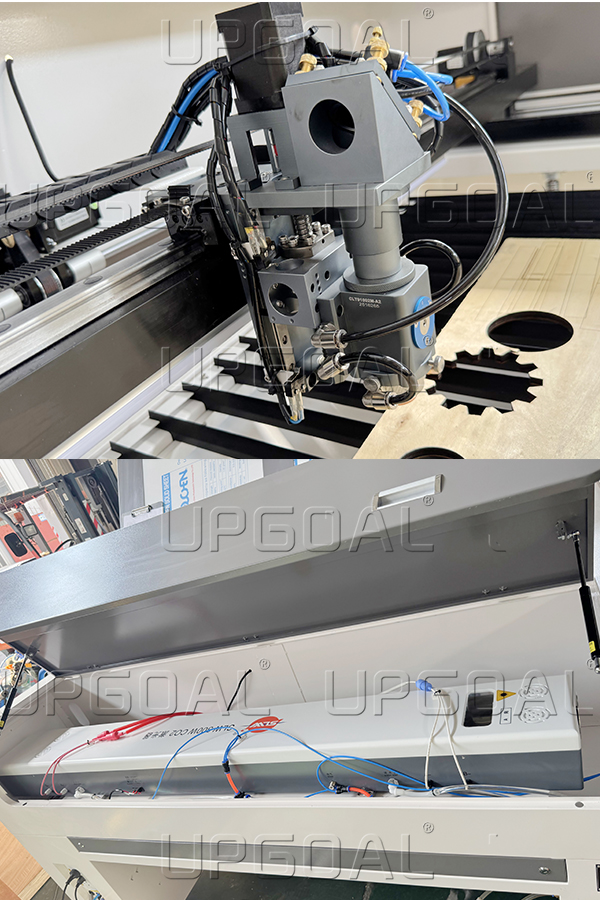

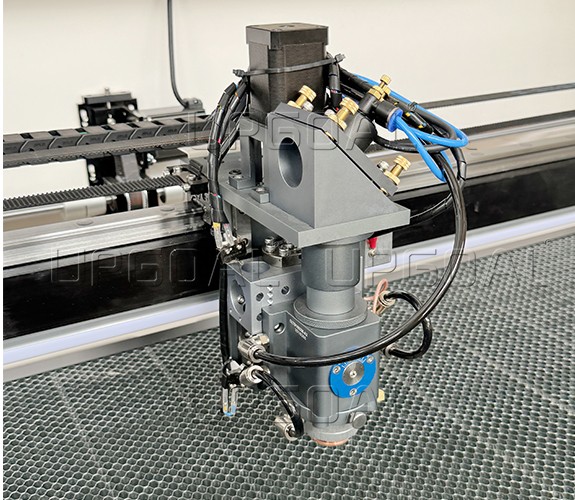

5. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.
6. High strength knife strip cutting table, applicable for metal and non-metal cutting.
7. Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance
8. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power 9. Adopt 3phases Yako stepper driver with high dynamic response performance and loading capacity.
10. Imported High precision, low friction force and stand wear CSK Taiwan linear square guide rails and blocks with 3M belt transmission type. High speed and precision with smooth cutting surface.

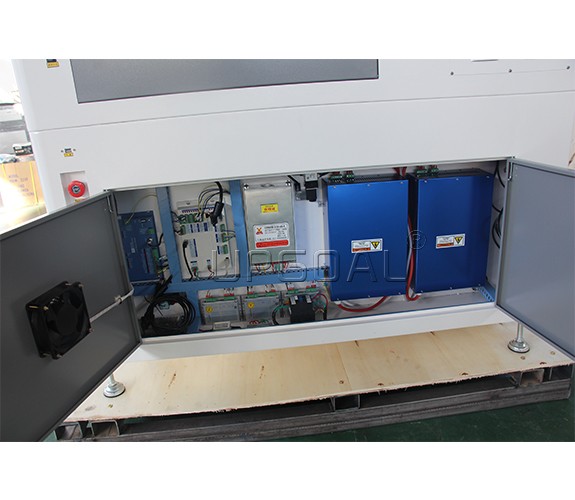

11. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.
12.Teyu Industrial water chiller CW-6000 is equipped to ensure the machine can work last long time.
Effective working area | 1300*900mm /4.3*3feet |
Laser Type | Folding co2 tube |
Laser tube power | 300W,SLW, China |
Working table | High strength knife strip |
Oxygen control system | Yes |
Laser head | Automatic torch height controller laser head structure for metal materials |
Driver mode | 3 phase stepper motor and driver(Leadshine) |
Guide rail | Linear square guide rail ( CSK,Taiwan) |
Transmission | Belt |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | RuiDa control system 6332M (Live focus system) |
Control software | MetalCut |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller, CW-6000 (Teyu) |
Water protection system | Yes |
Blow-off system | Air pump and air blower |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Voltage | AC 220V/110V, 50/60Hz, single phase |
Supporting picture format | PLT、DST、DXF、BMP, DWG、AI、LAS,etc |
Certificate | CE/FDA |
